Optical Turnstile - Speed Gate - Quick Ship

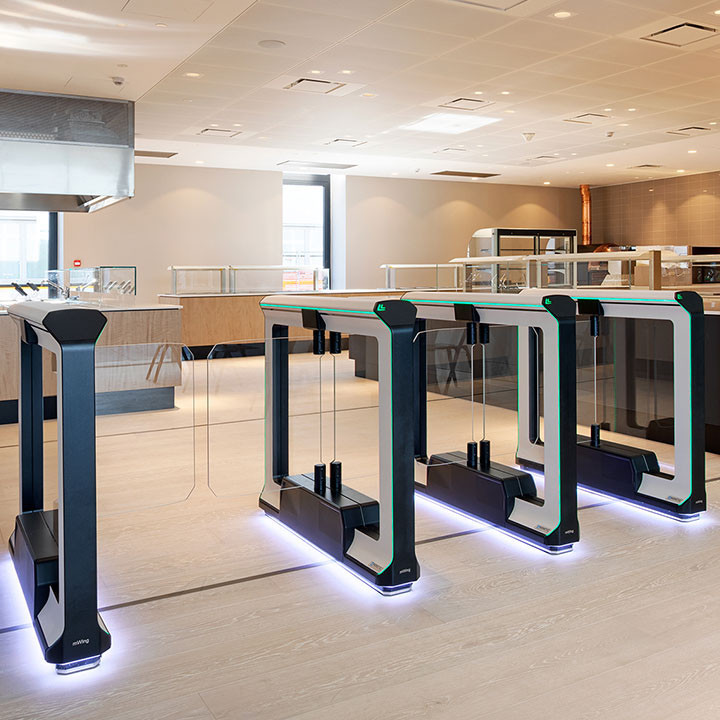

This optical turnstile is a high-speed pedestrian access-control system designed to secure entrances while maintaining an open, modern architectural appearance. Motorized transparent barrier panels move automatically to control pedestrian passage without requiring physical contact, making the system well suited for corporate offices, commercial buildings, cultural institutions, public facilities, universities and other high-traffic environments.

The bi-parting glass barriers open rapidly and move away from the pedestrian's path, then return to the closed position after passage. The system can also remain open when another authorized credential is presented or when the site is placed into open-passage mode for increased throughput. Your existing Security Entrances configuration lists opening times of approximately 0.6–1 second, depending on barrier-panel dimensions.

The system uses photoelectric sensors within the passageway to detect people and objects without physical contact. Access-control devices such as card readers, proximity readers and other credential systems can be integrated into the gate, while audible and visual indicators can communicate authorized passage, rejected credentials, tailgating and unauthorized entry.

For architects and facility planners, the system can be configured around different passage requirements. ADA compliant free passageway is 36.2-inch (920 mm) wide-lane for wheelchair users, equipment, groups or material movement. Standard width if needed where space is limited is approximately 23.6 inches (600 mm). Barrier-element heights can range from approximately 35 inches (888 mm) to approximately 71 inches (1,800 mm), allowing the security level and visual separation to be matched to the application. Multiple lanes can be installed together to increase pedestrian throughput.

Options can include floor illumination, frame-edge lighting, passage-direction indicators, electronic interlocking, warning functions and emergency-release capabilities. The system is also designed for continuous-duty operation and is rated for approximately 10 million opening and closing cycles.

Architectural & Security Applications

The Optical Wing Gate is particularly suited to:

• Corporate office entrances
• Commercial buildings
• Universities and schools
• Government facilities
• Hospitals and healthcare facilities
• Museums and cultural institutions
• Transportation facilities
• High-security monitored entrances
• Employee access areas
• Multi-lane reception and lobby entrances

The open, transparent design provides controlled access without creating the enclosed appearance of a conventional turnstile while still allowing the barrier height and configuration to be selected according to the required level of security.

Specifications

Application: Indoor and outdoor
Standard Passage Width: 23.6 in / 600 mm
Wide Passage Width: 36.2 in / 920 mm
Standard Barrier Height: 35 in / 888 mm
High Barrier Height: 71 in / 1,800 mm
Opening/Closing Time: Approximately 0.6–1 second, depending on configuration
Flow Rating: Approximately 40 persons/minute, depending on conditions
Drive: High-performance automated drive system
Control System: Programmable access-control system
Power: 100–240 VAC, 50/60 Hz
Power Consumption: Approximately 20–107 W depending on operating mode and options
Duty Cycle: 100%
Enclosure Rating: IP54

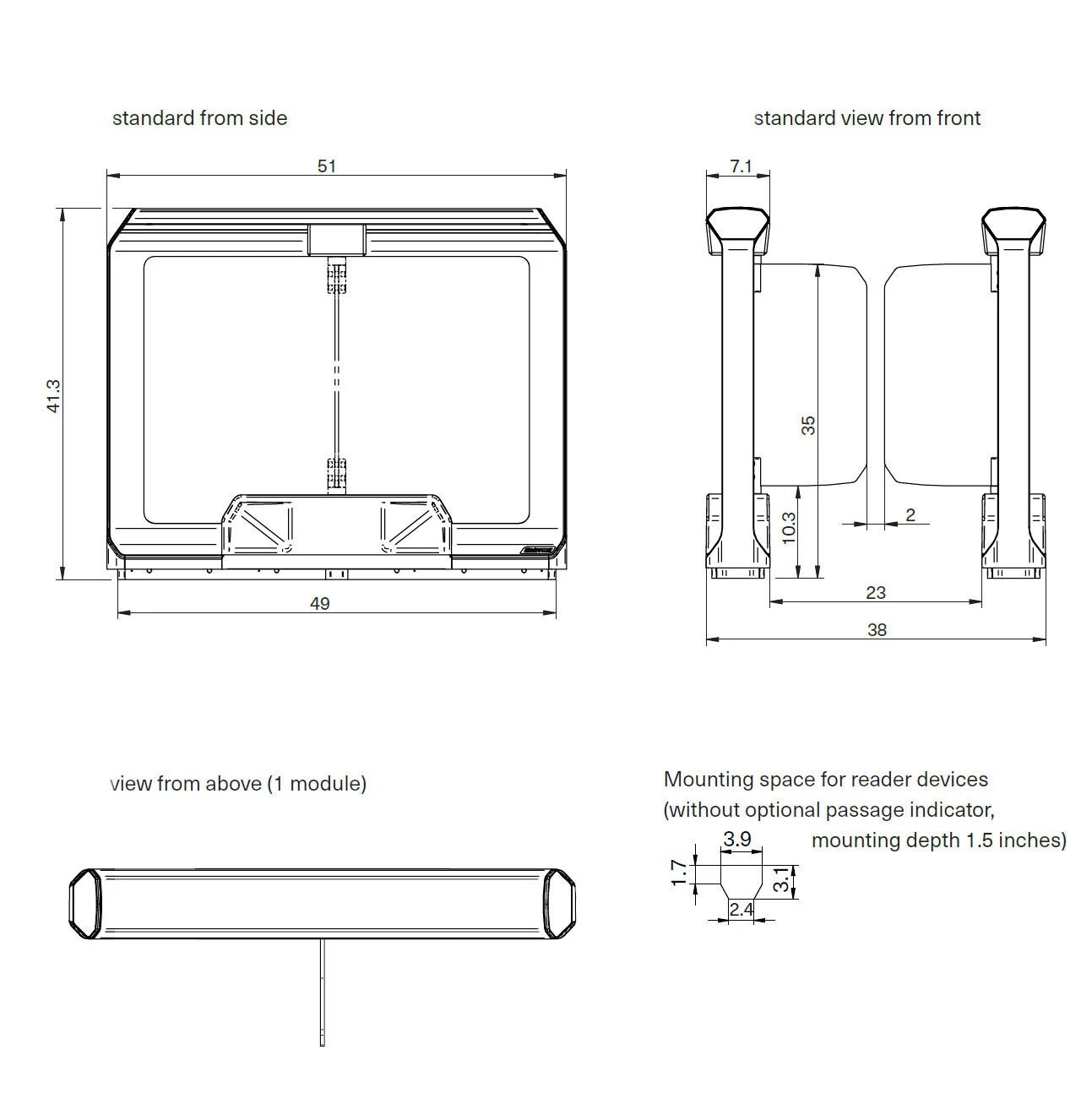

Housing Dimensions: Approximately 51.2 × 7.1 × 41.3 in / 1,300 × 180 × 1,050 mm per module
Weight: Approximately 265 lb / 120 kg per module
Operating Temperature: Approximately −22°F to +131°F / −30°C to +55°C

Security & Access-Control Features

The system can integrate into a building's access-control architecture and support:

• Card and proximity readers
• Keypads and credential devices
• Direction-of-passage indicators
• Photoelectric passage sensors
• Tailgating and unauthorized-entry detection
• Electronic interlocking
• Audible and visual status indicators
• Floor and frame-edge illumination
• Emergency release
• Fire/emergency integration where specified
• Ethernet connectivity
• Multi-lane configurations

Installation & Architectural Planning

This system should be coordinated with the building's architectural and electrical plans before installation. Each module requires a properly prepared finished floor or approved base-frame installation, along with electrical power and access-control/data connections. Usually, the concrete is trenched for conduit, or core-drilled from the floor below.  If drilling is not recommended, ask about our baseplates which fit perfectly and allow conduit within instead of digging up the floor.

For new construction, the manufacturer's dimensional information identifies a base frame option with adjustable height, while an adhesive mounting plate is available for finished-floor installations. Reader mounting locations and required clearances should be incorporated into the architectural layout before the final floor finish is installed.
