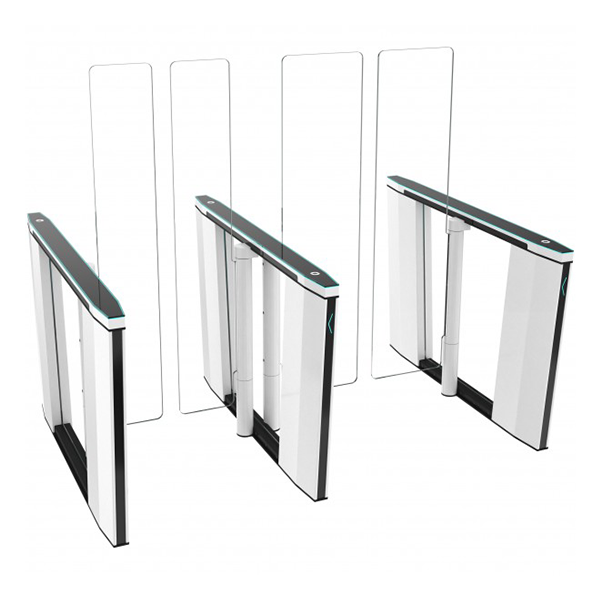

Thin Cabinet Turnstiles, with Tall Panels

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6

Product Description

The slimmest cabinets on the market in 2020, these architecturally pleasing cabinets add elegance to any lobby entryway.

Dimensions: Cabinets are 62.2" (1580 mm) Deep, and 3.9" (99mm) Width. Standard width is customizable for your space, or an ADA-compliant lane has 36" passage widths.

Proximity readers can be flush mounted each direction.

This is perhaps the most sophisticated optical turnstile on the market today.

Alarms alert when unauthorized use is attempted. Alarm sounds can be customized by end user, including voice alarms.

24 pairs of top and bottom optical sensors give remarkable protection against tailgating and cross-over detection to ensure security and safety. The sensors detect a person and also luggage, a wheelchair or a stroller.

Cabinets are stainless steel and the clear 10mm tempered glass panels open and close without needing to be touched.  The clear panels are often ordered with a frosted band to increase visibility.  The bi-directional, bi-parting panels are fast and quiet with motorized action.

Any RAL color can be used, brushed stainless steel, polished stainless steel or bronze stainless steel. The cabinet top lids can also be customized in any color, including with a corporate logo.

Side glass inside the elegant cabinets is 6mm tempered glass which gives a most "open" feel to these slim turnstiles.

While each lane requires two cabinets, you can have multiple lanes in a row by adding a double-cabinet in between end cabinets (with panels on both sides).

A unique self-diagnostics enables remote access and control.

Clear bi-parting barrier panels are 47" or 71" tall. The clear panels open quickly, moving away from the user in the same direction as the person walks.  As the user passes through the turnstile, the barriers smoothly return to the closed position (ready for the next user) or, if another credential has been presented, the panels stay open for the next users’ passage.

Indicator light arrows on fronts of cabinets and LED lighting on edges of top lid aid in intuitive navigation.

Features and Options:

  • Access Control Ready (compatible with all systems)
  • 2-Way, motorized motion of safety-glass panels
  • Optional standard panels available (39")
  • Console for guard desk to allow access or set alerts
  • Software for PC to manage remotely
  • Audible alerts warn of misuse or tailgating
  • Fail-Safe or Fail-Lock options on power failure
  • Sensors track and allow authorized passage
  • Fire alarm system can connect to open passageway
  • Forced entry attempts set off alarms
  • Software for manual remote control and gates status monitoring via PC

Indicator lights show status, and audible sounds prompt users, and provide clear notification of card acceptance or rejection, unauthorized entry, tail-gating, standing in the lane without moving, etc.  Matching Posts with Clear Infill Barriers can be added to frame the left/right sides if required.

Product Features

Description:
Thin 3.9" Cabinets
Description1:
Bi-Parting Clear Barriers
Description2:
62" D x 56" H Cabinets
Description3:
Custom Colors
Description4:
ADA 36" Lane
Description5:
Elegant Lighting
0 (hours)
:
0 (minutes)
:
0 (seconds)

Today's Special Offer

Use Code: S7456

Call Today

at checkout and save! for custom pricing!

Choose Your Options

SKU:
TG-TON-SILOS158T

Request Quote:

Quantity:
$19,200.00
(You save $650.00)
Retail Unit Price $19,850.00
