Semi-Circle, Double Doors, Wheelchair Access

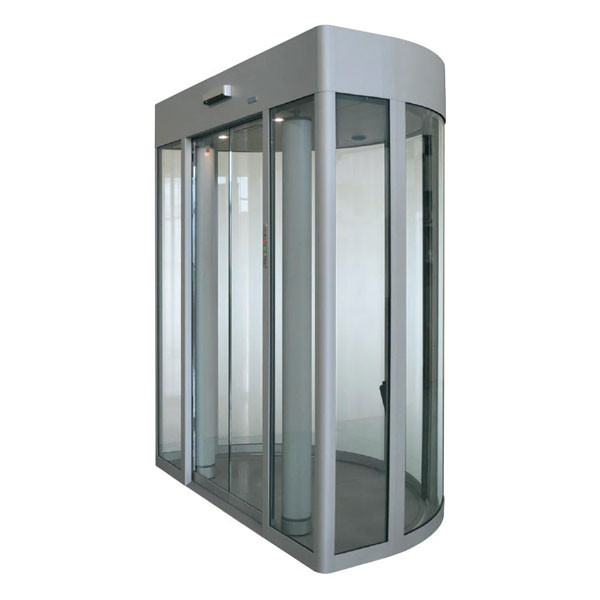

Semi-Circle Portal with elegant access control.

Interlocked door system intended to fit over existing door frame or use with our double-doors for entry.

This model is normally connected where a previously installed frame of a double-sliding automatic or a manual door was situated.

Access into the secured area is through two electric motor assisted, fast sliding double doors for entry and curved double-doors for entry into a secure area.

The user enters straight through with a clear passage of 900 mm or 35.43" W x 2000 mm (78.74")

Dimensions are 1920 mm W (75.59") x 1250 mm D (49.21") x 2400 mm H (94.49") with glass laminated in a 20/21 mm BR2/S P4B rating.

Other Features:

• Access Control: Access control features will integrate with your access control system
• 1-Person Only Weight Cell Sensors
• Digital display, menu-guided command and setting console
• Intercom, voice messages and indicator-lights
• LED Spot Lights
• Easy-link to third party manufactured access control systems (RS232 - RS485 – IBIS interfaces)
• Hidden micro-camera inside the cabin for surveillance
• Entry-side mechanical key for additional locking
• Proxy and swipe-card and biometric readers easily added
• 25 mm thick resin floor
• 20/21 mm side laminated thick glass (BR2/S-P6B)
• RAL Color painted steel

Optional Features:

• CEIA Metal Detector: a built-in metal detector checks for metal objects or weapons.
• Left Object Alert: If an object is left in the corridor an alarm will sound.
• Anti-Camouflage Alert: Each person must display their face without covering it up and a photo is taken and stored.
