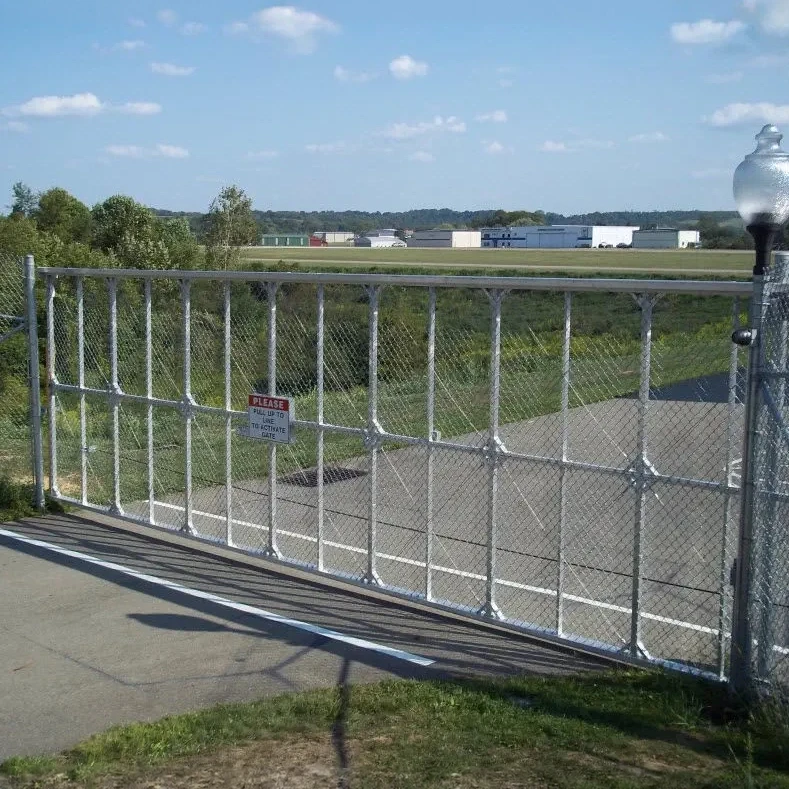

Cantilever Sliding Gate - Chain Link

The Sliding Cantilever Gate - Chain Link is a vehicle access-control solution designed for wide entrances at industrial facilities, distribution centers, airports, and utility sites. Its welded structural aluminum frame and double-track design support larger openings while maintaining stability during travel. The gate slides beside the entrance without ground wheels, a ground track, or overhead support. Adjustable cable bracing helps maintain frame alignment. An integrated gate operator is available for automated access; opening speed depends on the selected operator.

Gate Heights and Configurations

• Height: Standard heights up to 8 feet
• Width: Single openings up to 40 feet; double openings up to 80 feet

Infill Options

Available infills include chain-link fabric, aluminum pickets, extended pointed pickets, and welded-wire mesh. Additional choices include privacy louvers, perforated or expanded metal, and custom infills. Mill-finish aluminum and powder-coat colors are available. Gate dimensions and infill selection are subject to wind loads and site conditions.

Control and Accessory Options

The gate is available with an integrated operator for automated operation. Access controls and safety accessories are selected to suit the operator and facility requirements. Opening speed, electrical service, and control connections depend on the specified automation package.

Installation

Allow sufficient space beside the entrance for the full gate length and sliding travel. The counterbalance section measures at least 50% of the clear opening width. Four support posts carry the double-track system. Coordinate foundations, post placement, safety screening, and operator connections using project-specific installation drawings.

Specifications

Gate Type: Structural cantilever sliding gate
Construction: Welded structural aluminum extrusions
Gate Height: Standard heights up to 8 ft; taller multi-panel designs available
Passage Width: Up to 40 ft single; up to 80 ft double or bi-parting
Infill: Chain link, aluminum pickets, welded-wire mesh, louvers
Opening Speed: Depends on selected operator
Drive: Optional integrated gate operator
Rollers: Self-aligning four-wheel truck assemblies with sealed ball bearings
Ground Track: Not required
Power Supply: Depends on selected operator
Finish Options: Mill-finish aluminum or powder coating
Security Features: Optional pointed pickets and anti-climb welded-wire infill
Accessory Options: Compatible access controls and safety devices
Application: Industrial vehicle access and perimeter control
