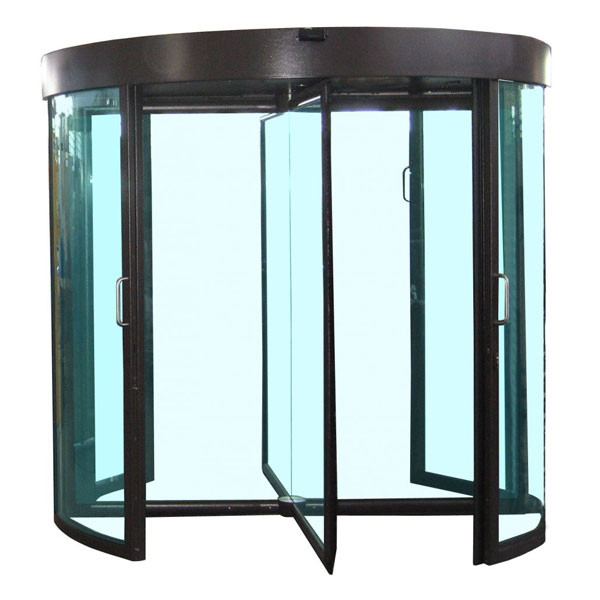

Revolving Door, 2-Way Access with 4 Wings

This motorized and revolving 4-sector turnstile offeres 2 way access control in a high traffic flow in a revolving door look and feel. An alarm can be triggered if more than one person is attempting to enter at the same time ("tailgating" in the same turnstile sector) or a person does not scan or their employee badge or fingerprint to enter.

Free exit is standard but access control can also be used for exiting as well.

Throughput is up to 29 people per minute in both directions.

The larger 4-wing frame allows a greater throughput or more people travelling through the revolving turnstile, up to 40 passages per minute.

This revolving turnstile is either for outdoors leading into a building (sealed for protection against rain and snow) or for an indoor installation.

Glass is 11/12 mm laminated glass for turnstile wings and sides, but thicker glass can be requested.

Only-One Person

Sensors in the ceiling of the revolving door’s entry sector, in conjunction with additional software, detect if one or more people are present in that turnstile sector and the turnstile stops and reverses so the person can correct the problem.

This motorized revolving turnstile can be integrated with any card or biometric system to operate the turnstile. The scan can be made outside or inside the turnstile depending on the placement and style of reader.

Security checks can be required for building access yet with a high flow capacity and a minimalist, attractive design.

Other Features and Options:

• Intercom, Voice Messages
• Activation and Direction Lights
• Standard AC Dimensions are diameter 2300 mm (90.55")  x H 2292 mm (90") with 4 wings
• Passageway: 1400 mm (55.11") x H 2090 mm (82")
• Backup battery included
• Digital display, menu guided setting console
• Installation on existing floor (no floor)
• Waterproof roof for outdoor to indoor installation
• RAL Color (powder coated) or Stainless Steel finish
• 24 VDC Electric Motor with reverse free rotation if power failure
• Inside Lighting with 12V, 50/60 Hz LED Spots
• Emergency escape/manually unlock door locks; automatic/manual passage in both directions
• Self-adjusted braking, speed control and accident prevention devices

This turnstile also comes in a 3-wing model which has a smaller diameter of 1800 mm, or 70.86" and smaller free passageway of 750 mm or 29.52".
