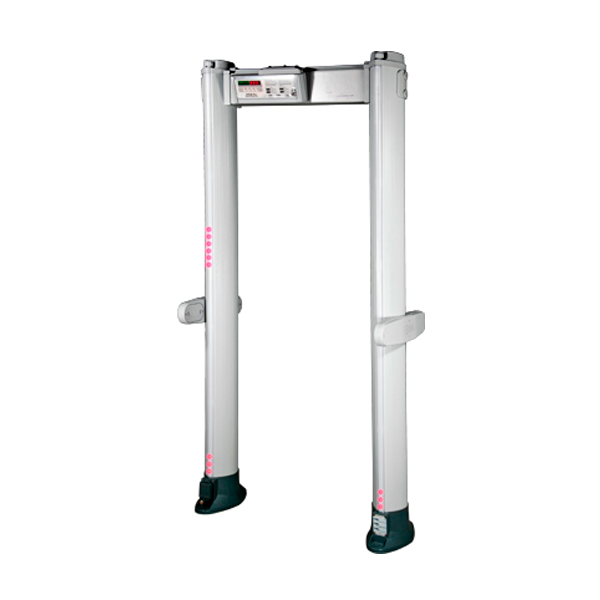

Metal Detector - D2PM - Eliptical

 Detection Features

• Capability to detect the full range of metal weapon threats even within body cavities.
• Met-Identity technology for Identification of Threat Composition. The most advanced Security Standards require detection of all ferrous and non-ferrous metal weapons and of those constructed in special nonmagnetic alloys. The PMD2 Plus detects firearms and knives of this type, even when they are hidden within body cavities, and accurately indicates the position of the threat, its intensity and its prevalent composition. Inspection personnel thereby acquire thorough knowledge of the metal item and can act, according to procedures, with maximum effectiveness and security.
• 60 pinpointing zones with high resolution & precision: 20 Vertical, 3 Lateral.

Unique Alarm Signaling

• 4 Multi-Zone Display Bars, each programmable as entry Stop/Go and/or local alarm indication.
• High visibility of the control unit and the zone indication independent from the operator position and the installation environment. Accurate signaling is essential for best operation and flow management. The PMD2 Plus provides the user with fully-programmable signaling. Both entry-points can indicate with a high level of accuracy, even simultaneously, the vertical and lateral areas of transit of the threats detected, and can also be configured as ’traffic lights’ to control transits through the detector.
• Flexible Acoustic Alarm Signaling System: 10 Continuous and Pulsed Tones. 34 Special Sounds.
• 10 Acoustic Intensity Levels. A complete acoustic alarm system allows personalization of the alarm tones and intensities, with a wide choice of continuous, pulsed and special tones at different levels of intensity. The wide volume control dynamic allows operation even in very noisy environments.
• Very High Precision Transit Counter: In-Bound Transits, Out-Bound Transits, Alarm Rate, Automatic Compensation for repeated transits of the same person. The metal detector provides an automatic count of the people passing through the access point in both directions and the related nuisance alarm percentage.

Unmatched Throughput

• Cutting-edge discrimination technology allows personal effects to be ignored, creating rapid transit flow. The transit volume magnetic scanning system, invented by CEIA and applied since production of the first zonal Metal Detectors in 1986, allows state-of-the-art detection and discrimination results. The PMD2 Plus has an extremely low nuisance alarm rate even at the strictest Security Levels requested today, and therefore allows high transit flow rates and the minimum need for intervention by inspection personnel.

Most Powerful and Versatile Security Features

• Up to 50 built-in Security Programs: Up to 30 International Standards, Up to 20 Customizable Levels. Setting the Security Levels could not be easier and more versatile than in the PMD2 Plus. Users can choose directly from the known International Standards or request implementation of a Standard personalized to their own requirements. Users can also create their own work program and save it in internal memory.
• Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc.) and security level selection. One unique characteristic of the CEIA metal detectors is the chip-card system, which allows Security Management to set the Security Level quickly, reliably and without having to program the device in any way.
• Any security standard can be enhanced with selectable random alarm probability.

Rapid Installation

• One touch guided automatic installation (OTS). Innovative function assisting the installation through an automatic step-by-step procedure.
• Continuous self diagnostics assures monitored performance reliability.

Key Features

• Elliptic column shape or traditional panel versions available
• Wide range of threat detection from guns to ½ cutter blade
• Excellent discrimination of personal metal effects
• 60 zones with left, center and right indication
• Met-Identity technology identifies the metal type in real time
• High precision bidirectional counter with automatic rescreening compensation
• Chip Card capability for fast, simple, and secure programming
• Random alarm capability programmable from 0% to 100%
• Exceptional Immunity to external interferences
• One touch automatic self installation (OTS)
• Powered by safe low voltage DC
• Standard Interfaces: RS-232, Bluetooth, Infrared
• Other available interfaces: Ethernet, USB

Quality

• Continuous self diagnostic system
• Proven reliability
• No periodic re-calibration and preventive maintenance required
• No scheduled maintenance
• Fully digital design

Walk-Through Gate Structure

• State-of-the-art, robust and washable panels or compact elliptical columns
• Protected against aging, weather and wear

Central Control Unit

• Ergonomic and robust design
• High visibility alphanumeric display and programming keyboard
• Made of advanced plastics or stainless steel and anti-vandalism construction (option)
• Access to the front panel protected by hardware key and two levels of passwords

Alarm Signalling

• Visual Signals
  • Multi-zone display bar for “height on person” localization
  • 4 light bars with selectable entry/exit and pacing indication
  • Green and red metering signals proportional to the mass of the detected target
• Audio Signals
  • 10 selectable continuous and pulsed tone plus 34 special tones
  • 10 selectable sound intensities ranging from 0 to 90 dbA at 1m

Type of Signalling

• Visual
  • Fixed or proportional to the mass in transit - visible from 6m under lighting of 4000lux
• Visual Zone Indication
  • 60 distinct zones (20 vertical x 3 horizontal)

Programming

• Over 40 built in security programsRemote via RS-232, Infrared Remote Control Unit, BluetoothTM or Ethernet 10/100 base T (option) interface
• Security LevelLocal by Control Unit alphanumeric display and keyboard
  • International Standard (IS) command
  • Chip card
• Programming and chip card access protected by user and super-user passwords

Operational Features

• Very high discrimination and transit flow rates five or more times greater than other metal detection systems
• Quick reset time as short as 0.2 seconds for high throughput rate
• Very high detection speed (up to 50 ft/sec.)
• Built-in operational functional verification
• One-touch key reading of inbound, outbound and Security Level Data

Installation Data

• Automatic synchronisation between two or more metal detectors with distance of down to 5 cm (2”) without the use of external cables
• Automatic Installation function (OTS)

Certification and Compliance

• Compliant with the applicable Standards for Enhanced Metal Detectors
• Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
• Compliant with all Airport Security Standards worldwide
• Compliant with applicable International Standards for electrical safety and EMC
• Harmless to magnetic media (floppy disks, tapes, etc.)
